Features:

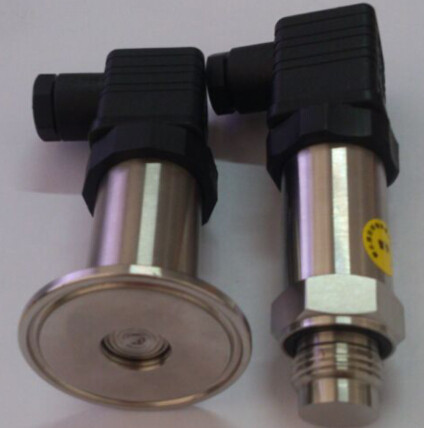

Flat Diaphragm structure design,suitable for viscous liquid;
Fast installation;
Easy to clean;
Suitable for sanitory environment;

Applications:

The oil industry, chemical industry, Electric power.
Hydrautlic pressure system, pneumatic system.
Energy and water treatment system.
Automation equipment.
Industrial process control.

Performance parameters

Pressure range: -0.1~60MPa
Pressure type: Gauge pressure,Absolute pressure
Output signal: 4~20mA , 0~10V or Optional
Accuracy(%FS): 0.1 0.25 0.5
Nonlinearity(%FS): <0.2
Hysteresis(%FS): <0.2
Repeatability(%FS): <0.2
Zero drift(%FS/): <0.1
temperature drift(%FS): ≤0.02
Operating voltage(V): 12~36V DC(Standard:24V)
Operating temperature: -20~85
Overload capacity(%): >200
Life span: more than 9 million times pressure cycle
Load resistance: <750
Response time(ms): <1
Media: Media compatible with 316L
Disphragm material: 316L or the ceramic diaphragm
Housing material: SUS304 or 316L
Pressure interface: Fast clamp
Enclosure rating: IP65
Weight: 90g

Shenzhen Haohua  Electronic  Co.,Ltd is commitment to research and production and sales of various kinds of sensors ,automated testing equipment in one  high -tech enterprise. Our products include pressure sensors ,liquid level sensors,
humidity and temperature  sensor, pressure transmitter ,control instrument, and non-standard test equipments are widely used
in oil industry, chemical industry ,metallurgy, electric power ,environmental protection, metering , automatic control
,manufacturing process inspection and other domain. Kinds of non-standard sensors can be made according to your requirement.
we constantly pursue the "quality first ,sincere service" business philosophy  to provide most sincere and satisfactory
services for customer at home and abroad.
