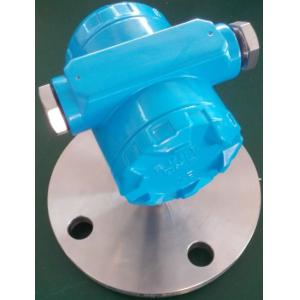

HART protocol Digital Display Intelligent Industrial Pressure Transducer HPT-2

HPT-2 digital pressure transmitter uses piezoresistive OEM pressure sensor as sensing element, which amplifier circuit transforms sensor signal into standard output signal. Through long-term aging and stability testing, the whole Product’s performance is stable and reliable. The transmitter with 2-wire 4~20mADC output and local display indicacator could be widely used on pressure measure in rugged environment, petroleum, chemi-industry,etc.

Features:

4 digit LCD Display

Fully digital signal processing

Strong Compatibility

Adjustable Zero and Span

Local display

Applications:

Hydraulic/Pneumatic Control Systems

Energy and Water Management

Automation equipment

Process control

Oil and gas

Specifications( Refer to 25℃ )

Sensor Type	Piezoresistive	Operable Temp.(℃)	-20~85℃
Wetted parts	316L Stainless steel	Storage Temp(℃)	-20℃…125℃
Housing	Aluminum alloy	Long term stability(annual)	±0.25%FS(Typical)
Sealing method	O-ring	Zero error(%FS)	±0.5%
Damping	Adjustable	Full range error(%FS)	±0.5%
Protection grade	IP66	Thermal Zero drift(%FS)*	±2.0%
Pressure port	See below code description	Thermal Span drift(%FS)*	±2.0%
Accuracy (Combined Non-linearity, Hysteresis and Non-repeatability)%FS	0.5%(Typical),025%,0.1%	Input Voltage / Output	See below code description
	0.5%(Typical),025%,0.1%	Response	1KHz
Pressure Range(Bar)	0~0.1……600bar	Insulation	Min1MΩ @250VDC&25℃
Pressure Range(Bar)	0~0.1……600bar	Shock	100g,11msec
Over pressure	3X Full Range	Noise	< 2m VRMS
Burst pressure	4X Full Range or 20kpsi which is less	Pressure reference	Absolute /Vent Gauge/ Seal Gauge
Life	>10⁷ Full Range Pressure	Weight	950g Max.

Outline Drawing:
